Green Valley Environmental’s particulate filter is a new type of dry exhaust gas purifier for heavy-duty diesel engines, independently developed with a combination of new materials and processes. It has all intellectual property rights. The device is composed of multiple metal DPF carriers in parallel. The diesel engine exhaust particulate filter adopts a snap-in fixed, pull-out unit design. When the engine is running, if the particulate matter causes high back pressure, the electronic control system will alarm and open the bypass. During engine maintenance, the metal core can be flexibly pulled out for water washing and regeneration. It does not consume any energy during operation.
The filter core is made of metal felt filtering material woven from French imported 316L alloy metal wire. Through professional fluid mechanics design, the exhaust gas can pass through the filter core in 360 degrees. When the exhaust gas flows through the particulate filter, the particulate matter in it is intercepted by the metal felt filtering material, effectively removing black smoke and PM particulate matter from the exhaust gas.
Green Valley Environmental’s SCR denitrification technology, under certain temperature and the action of a catalyst, uses a reducing agent (such as ammonia or urea) to selectively reduce nitrogen oxides (NOx) in the exhaust gas into non-toxic and pollution-free nitrogen (N2) and water (H2O). The catalyst lowers the activation energy of the reaction, allowing it to take place at a relatively lower temperature range of 150-450℃.
Installed in the engine’s exhaust system, located before the denitrification device, the exhaust gas first passes through the particulate filter to remove a large amount of particulate matter, reducing the clogging and pollution of the subsequent catalyst by particulate matter. After being treated by the particulate filter, the exhaust gas enters the denitrification reactor. At a certain temperature and under the action of the catalyst, the reducing agent reacts with the nitrogen oxides in the exhaust gas in the denitrification reactor, further reducing the emission of nitrogen oxides.
The Green Valley Environmental particulate filter and SCR denitrification reactor work together to effectively improve purification efficiency. The particulate filter effectively removes particulate matter from the exhaust gas, providing a cleaner exhaust gas environment for the SCR denitrification device. This not only improves the denitrification efficiency of the SCR denitrification device but also extends the service life of the catalyst. At the same time, the SCR denitrification device can further reduce the emission of NOx. The combined action of the two significantly reduces the emissions of particulate matter and NOx in the exhaust gas.

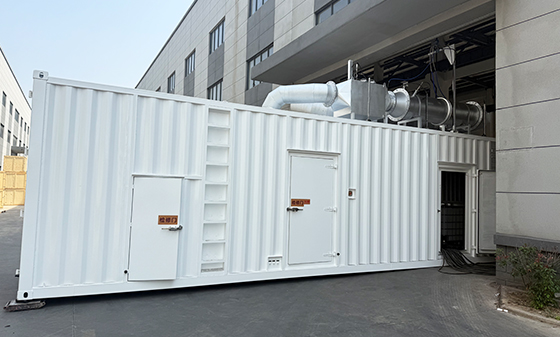

Project Name: Guangzhou [Company Name] Co., Ltd. Exhaust Gas Comprehensive Management
Treatment Type: DPF + SCR Denitrification
Brand Model: Cummins KTA50-G16A
Original NOx Emission: 3147mg/m3N reduced to 200mg/m3N
Original Smoke Dust Emission: <200mg reduced to 30mg
The Green Valley Environmental particulate filter and denitrification reactor work together to effectively reduce maintenance costs. The water washing regeneration function of the particulate filter makes maintenance simple and convenient. It only takes 30-40 seconds of water washing, and then it can be dried and reused, greatly reducing maintenance costs. By reducing the clogging and pollution of the denitrification catalyst by particulate matter, the maintenance frequency of the denitrification device is also reduced.
The Green Valley Environmental particulate filter is equipped with a safety bypass. When clogging causes high back pressure alarm, the bypass can be automatically opened to ensure the safe operation of the entire exhaust gas purification system. This enhances the stability and reliability of the entire system. Through the combined work of the Green Valley Environmental particulate filter and denitrification technology, the efficient purification of particulate matter and nitrogen oxides in the exhaust gas is realized. It not only improves the exhaust gas purification efficiency and reduces maintenance costs but also enhances the stability and reliability of the entire system, providing a more effective solution for exhaust gas purification.
